DC12V Negative Ion Generator AIR KJF03-03 -8.5KV Negative Ion Generator with Triple Emitter Heads for Air Purifiers and Lighting Modules For Car Air Purifier Parts

Detailed Information of Customized DC12V -8.5KV Negative Ion Generator with Triple Emitter Heads for Air Purifiers and Lighting ModulesProduct

Overview

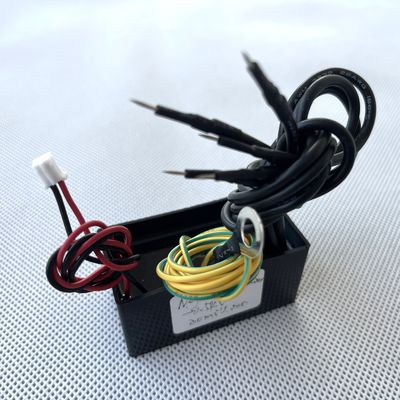

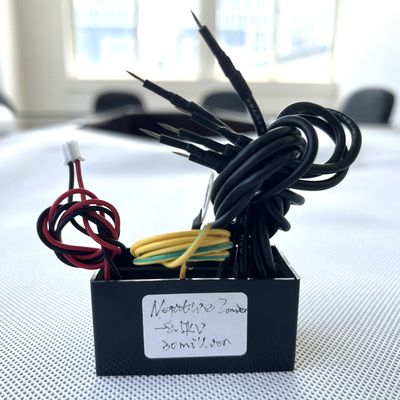

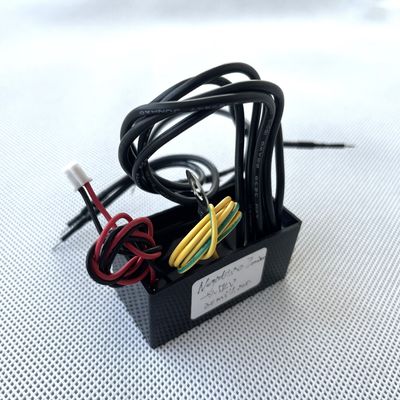

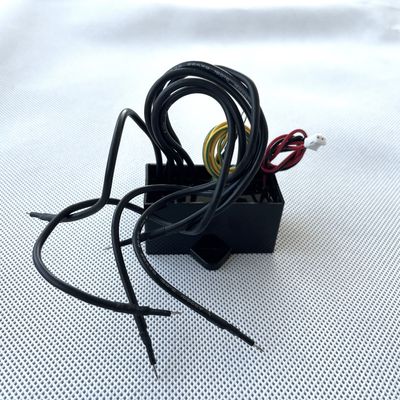

The DC12V -8.5KV Negative Ion Generator with Triple Emitter Heads is a high-performance air purification accessory designed for integration into air purifiers, lighting modules, and other related products. This advanced negative ion generator produces a high concentration of negative ions, which effectively neutralize pollutants, eliminate odors, and reduce dust particles in the air. With customizable emitter head configurations and grounding rings, it offers flexibility to meet various product requirements.

Technical Specifications

• Input Voltage: DC 12V

• Output Voltage: -8.5KV (Negative Ion Generation)

• Power Consumption: 12W

• Current: 100mA

• Emitter Heads: Three sets of emitter heads (customizable line length)•

 Grounding Ring: Included for enhanced performance and safety

• Negative Ion Output: Up to 30 million ions per second

• Dimensions: Main unit: 60mm × 30mm × 30mm (customizable based on requirements)

• Material: PBT

Features and Benefits

1. High-Efficiency Air Purification

• Pollutant Neutralization: The -8.5KV negative ion output actively seeks out and neutralizes harmful pollutants such as bacteria, viruses, and allergens.

• Odor Elimination: Effectively removes unpleasant odors caused by tobacco smoke, pets, and other sources, leaving the air fresh and clean.

• Dust Reduction: Negative ions attract and cluster dust particles, making them heavier and easier to be captured by air filters or settle down naturally.

2. Customizable Design

• Triple Emitter Heads: Three sets of emitter heads are included, each with customizable line length to fit specific product designs.

• Grounding Ring: Ensures stable performance and enhanced safety, making it suitable for various applications.• Dimensions and Material: The main unit is compact (60mm ×30mm × 30mm) .

3. Energy Efficiency• Low Power Consumption: With a power consumption of 12W, this negative ion generator is highly energy-efficient and cost-effective for long-term use.

4. Versatile Applications• Air Purifiers: Enhances the performance of air purifiers by providing additional purification capabilities.

• Lighting Modules: Can be integrated into lighting systems to provide air purification benefits while illuminating the space.

• Other Products: Suitable for a wide range of applications, including automotive, commercial, and public spaces.

Application

Scenarios

1. Home Use

• Living Rooms and Bedrooms: Provides continuous air purification, reducing allergens and odors for a healthier living environment.

• Kitchens: Eliminates cooking odors and grease particles, keeping the air fresh.

2. Automotive

• Car Air Purifiers: Installed in car air purifiers to continuously purify the air inside the cabin, improving the driving experience.3. Commercial Spaces

• Offices and Retail Stores: Enhances air quality in commercial environments, improving customer satisfaction and employee health.

• Restaurants and Hotels: Eliminates cooking odors and tobacco smoke, ensuring a pleasant dining and accommodation experience.

4. Public Spaces

• Schools and Hospitals: Maintains high air quality in public areas, reducing the risk of airborne infections.

• Public Transportation: Installed in buses, trains, and subways to ensure clean air for passengers.Customization Options

• Emitter Head Configuration: The line length of each emitter head can be customized to fit specific product designs.

• Integration: The negative ion generator can be tailored to seamlessly integrate with various air purifiers, lighting modules, and other products.
